9. Complete Activity 11.9 (Page 133). Take a convex lens or magnifying glass. Put it in the path of sunrays. Place a sheet of paper as shown. Adjust the distance between the lens and the paper till you get a bright spot on the paper. Hold the lens and the paper in this position for a few minutes. Does the paper begin to burn?
Now replace the convex lens with a concave lens. Do you see a bright spot on the paper this time too? Why are you now getting a bright spot this time?
Answer:
The activity can be carried out as follows:
Aim: To examine if a bright spot on paper can be obtained by placing a convex and a concave lens under the sun and make the necessary conclusions.
Materials Required: Convex lens, concave lens, white paper sheet,
Procedure:
Part 1:
(i) Take a convex lens or magnifying glass and place it in the path of sunrays out in the open.
(ii) Place a sheet of paper on the ground.
(iii) Adjust the distance between the lens and the paper till you get a sharp bright spot on the paper. Hold the lens and the paper in this position for a few minutes and observe what happens.
Part 2:
(i) Take a concave lens and place it in the path of sunrays out in the open.
(ii) Place a sheet of paper on the ground.
(iii) Try to get a sharp bright spot on the paper using the lens.
Observations:

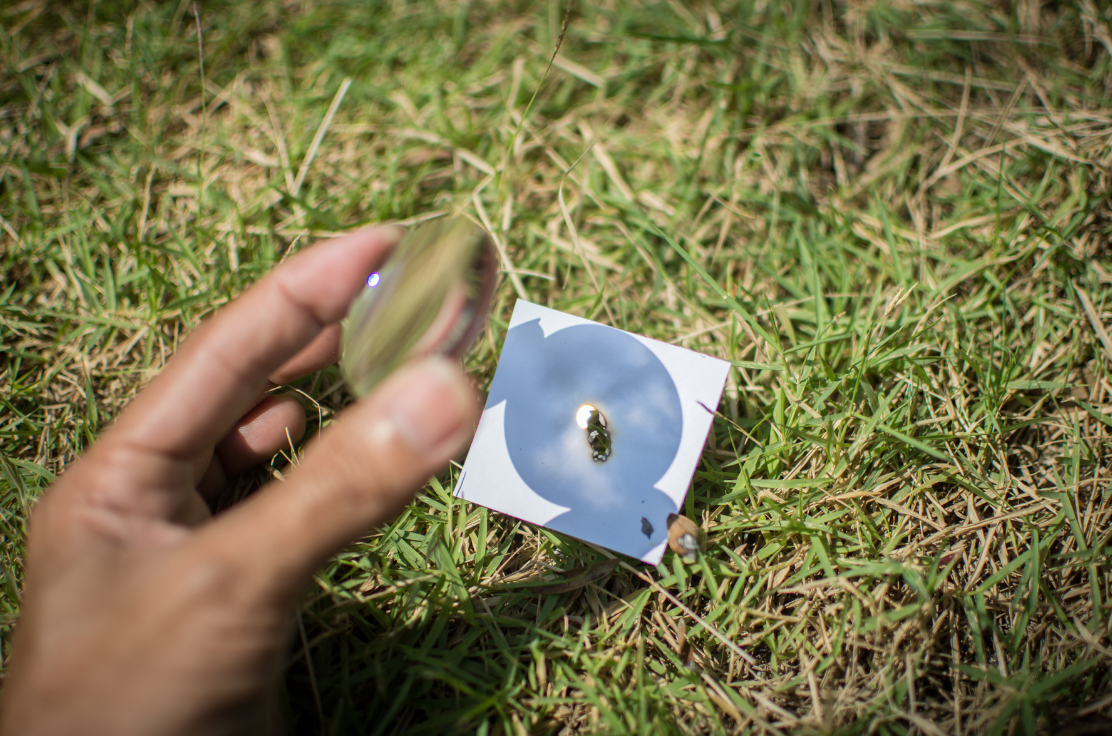

Part 1: For the convex lens you will see a focused bright spot on the paper and after a few minutes that part will start burning as shown below.

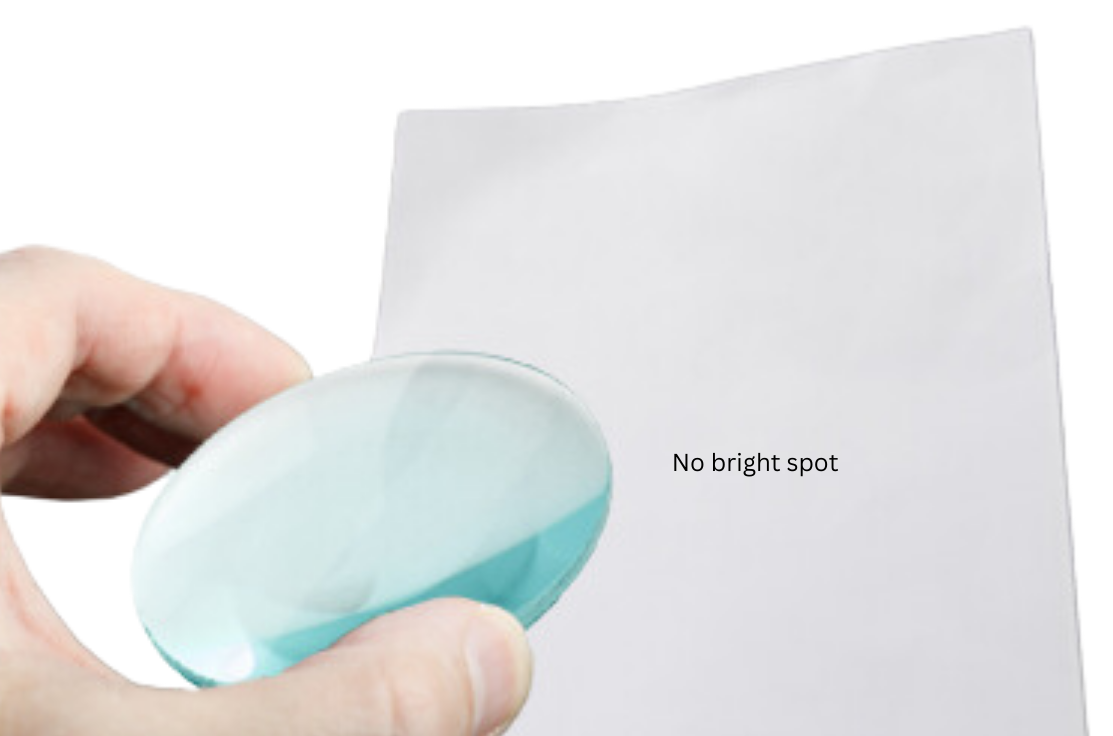

Part 2: For the concave lens you will not be able to get a focused bright spot on the paper as shown below.
Conclusions: We conclude that:
- You can get a bright spot using a convex lens, hence it converges light and is called a converging lens.
- You cannot get a bright spot using a concave lens, hence it diverges light and is called a diverging lens.
